NSRM Gas Insulated Enclosed Metal Switchgear
NSRM gas-insulated enclosed metal switchgear products are widely used in 10-35kV distribution systems, and are the preferred switchgear for various user substations and distribution systems in urban and rural areas. The switchgear adopts modular unit mode, which can be combined according to different purposes; it can be divided into two categories of fixed unit combination and expandable unit to meet the requirements of various substations for flexible use of compact switchgear.
The NSRM gas-insulated enclosed metal switchgear is a fully enclosed system with live parts and switches enclosed in stainless steel enclosures. The whole switchgear is not affected by external environmental conditions, thus ensuring the reliability of operation and personal safety, and is maintenance-free. By selecting the expandable bus, any combination can be realized to achieve full modularization; the safety insulation and shielding design of the expandable bus further ensure the reliability and safety.

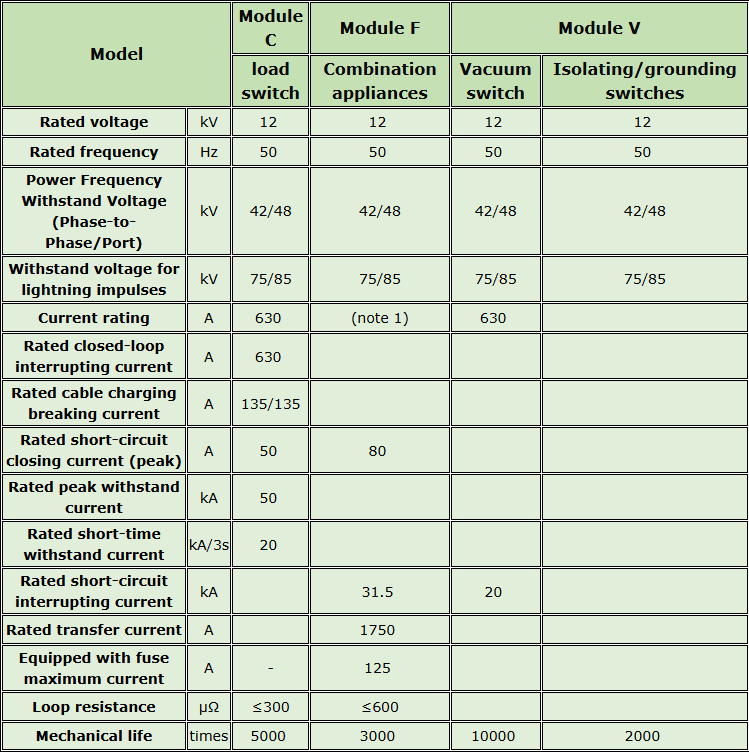

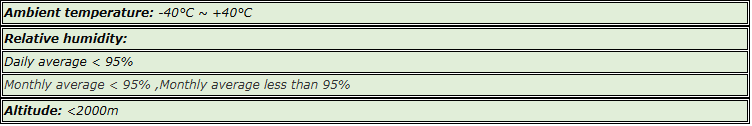

Technical parameters:
