GGD application scenario:

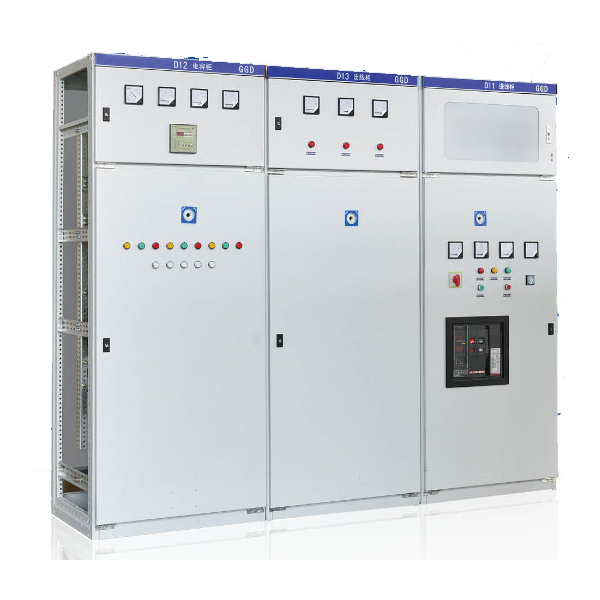

GGD AC low-voltage power distribution cabinet is specially designed for power plants, substations and industrial and mining enterprises, and is suitable for power distribution systems with frequency of 50Hz, voltage of 380V and current of 3150 A. It integrates the conversion, distribution and control functions of power, lighting and power distribution equipment. The design follows the principles of safety, economy and reliability. It has high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination mode and high protection. It is the preferred upgrade product of low-voltage switchgear.
Conditions of use:
Temperature range
: -5 ° C to + 40 ° C, average temperature not exceeding + 35 ° C.
Elevation
: ≤ 2000m (high altitude products can be customized).
Humidity
: ≤ 90% at 20 ° C, ≤ 50% at + 40 ° C Max.
Installation requirements
: The inclination of the equipment relative to the vertical plane during installation shall not exceed 5 °; the equipment shall be installed in a place without severe vibration and impact, and the electrical components shall not be subject to corrosion.
Special needs
: If the user has special requirements, it can be solved through negotiation with the manufacturer.

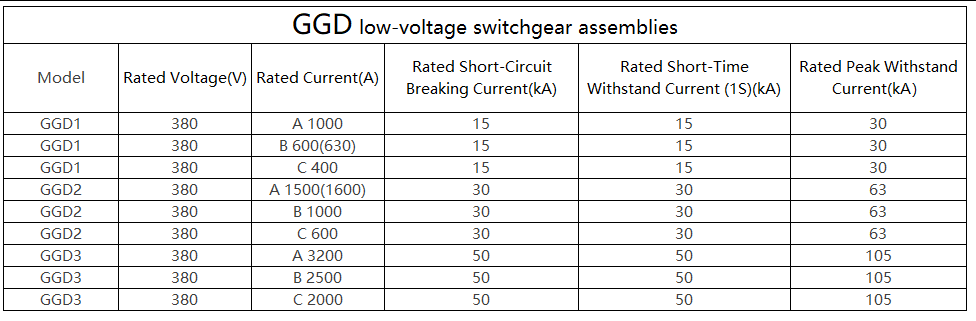

Basic information:
